THE E-ONE

HP 95 MID-MOUNT PLATFORM

AERIAL PLATFORM

A MID-MOUNT WITH A SINGLE SET OF OUTRIGGERS

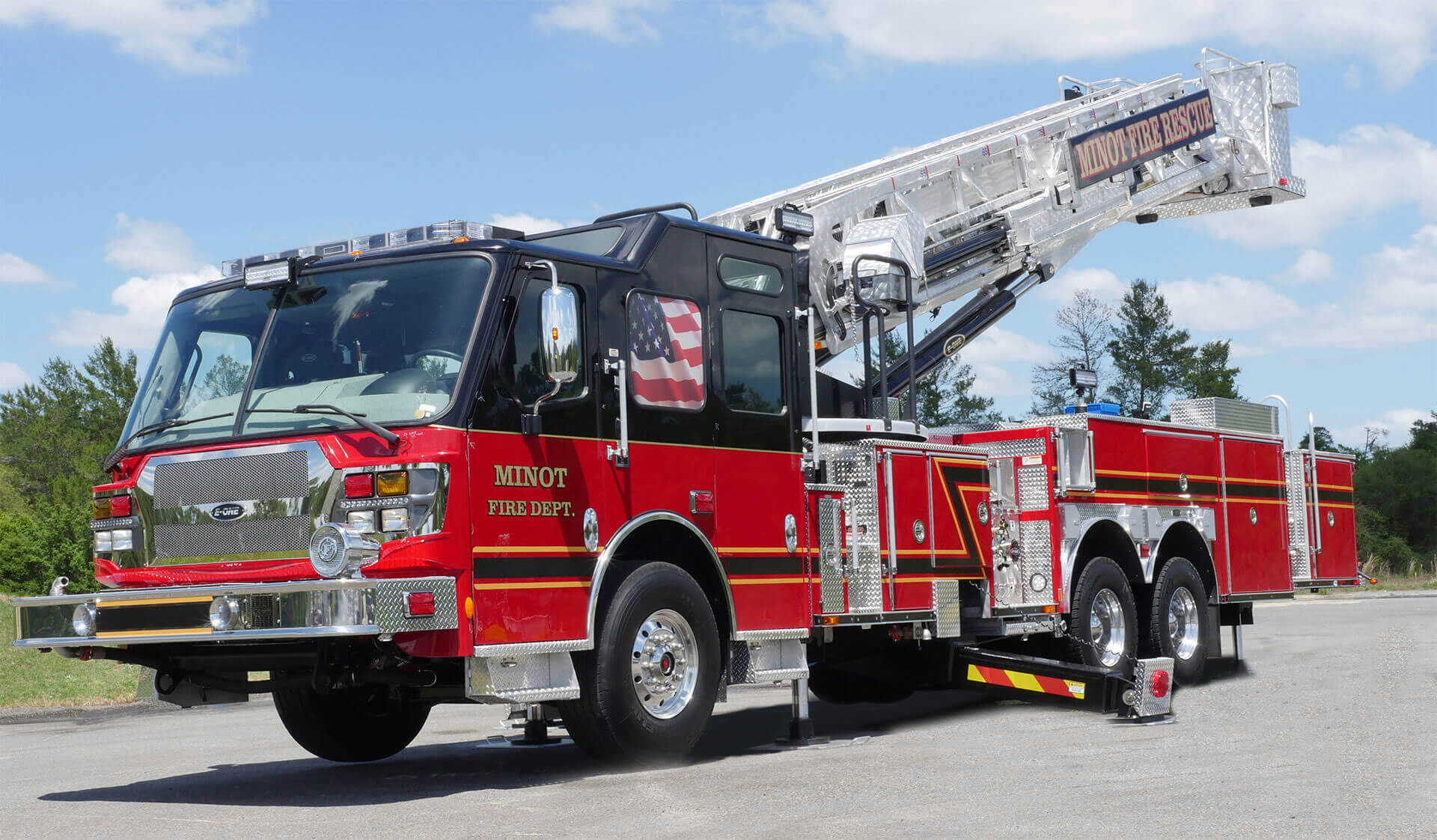

The HP 95 Mid-Mount has a single set of outriggers that requires minimal space for set up. With a reduced travel height, this truck is ideal for areas with low clearance requirements.

The HP 95 Mid-Mount Platform has one of the highest load ratings in the industry and can carry up to 1000-lbs. of personnel plus 305 lbs of equipment at full extension and all angles of elevation without water flowing. The HP-95 is available with up to 2000-GPM pump capacity, up to a 500-gallon water tank and various body configurations to meet your department’s needs.

Features

  • Typhoon® or Cyclone® chassis
  • Medium and long 4-door cabs available
  • Optional vista roof
  • Integral dual torque tube chassis
  • 250-260” wheelbase
  • Up to 600 HP engine
  • Standard safety features such as roll cage cab, CrewGuard®, ABS brakes & G4® (electronic stability control)
  • Optional air bags
  • 95’ welded extruded aluminum platform with 2.5 to 1 structural safety factor
  • 10’ 10” overall height; 9’10” overall height available
  • Rated at 1305 lbs dry (1000 lbs firefighters and 305 lbs equipment); 805 lbs wet (500 lbs firefighters and 305 lbs equipment)
  • Angled platform corners with front steps
  • Two criss-cross, underslung outriggers with spread of only 15’6”
  • Short jack standard
  • Single 1250 GPM monitor standard; dual monitors with 1500 GPM flow optional
  • Advanced leveling system and cab/body protection standard
  • Options include Aerial Information System (AIS), 2.5” valves, hose boxes, breathing air, parapet ladder, stokes receiver, LED or halogen scene lighting
  • Body available in extruded aluminum
  • Available “truck company” body with no tank or pump
  • SideStacker hosebed body provides up to 57 cubic feet of hose storage space
  • Available with standard or large capacity ground ladder tunnel
  • Hale® pump up to 2000 GPM
  • Stainless steel intake and discharge manifolds
  • Up to 500 gallon water tank
  • Customizable discharges and pre-connects to meet departments needs
  • Optional direct injection foam systems
  • Multiplex electrical system with color display provides increased feature capability and improved diagnostics
  • Options include LED scene lights, LED ladder climbing lights and 6-20  kW hydraulic generators
  • Whelen® optical and audible warning packages standard, others optional

QUICK & EASY SET UP

The HP 95 features a unique design with four drop down leveling jacks and a single set of low profile crisscross under-slung outriggers with 15’ 6” spread.

LOW TRAVEL HEIGHT

The HP 95 Mid-Mount is ideal for areas with low clearance requirements. Also available for in a 9’10” option without tank or pump.

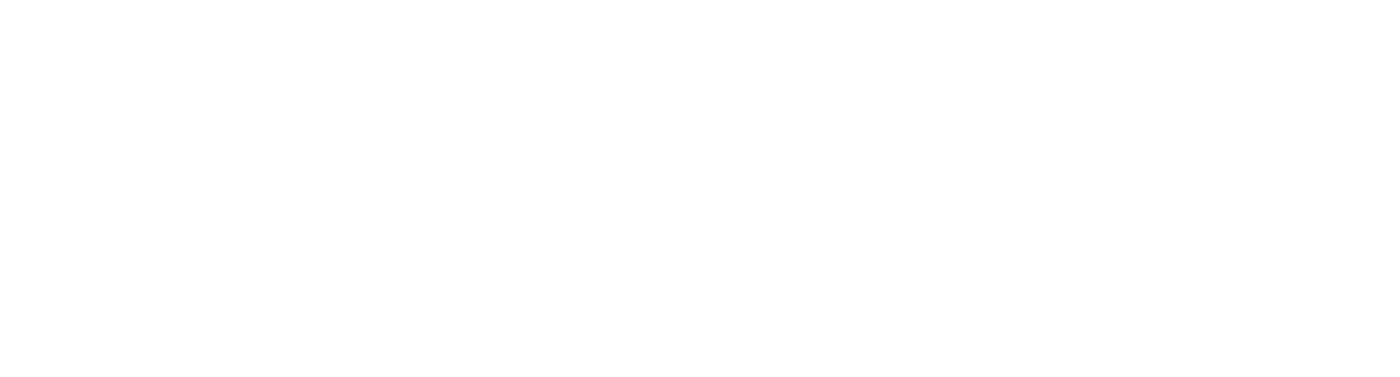

HP 95 MID-MOUNT HIGHLIGHTS
