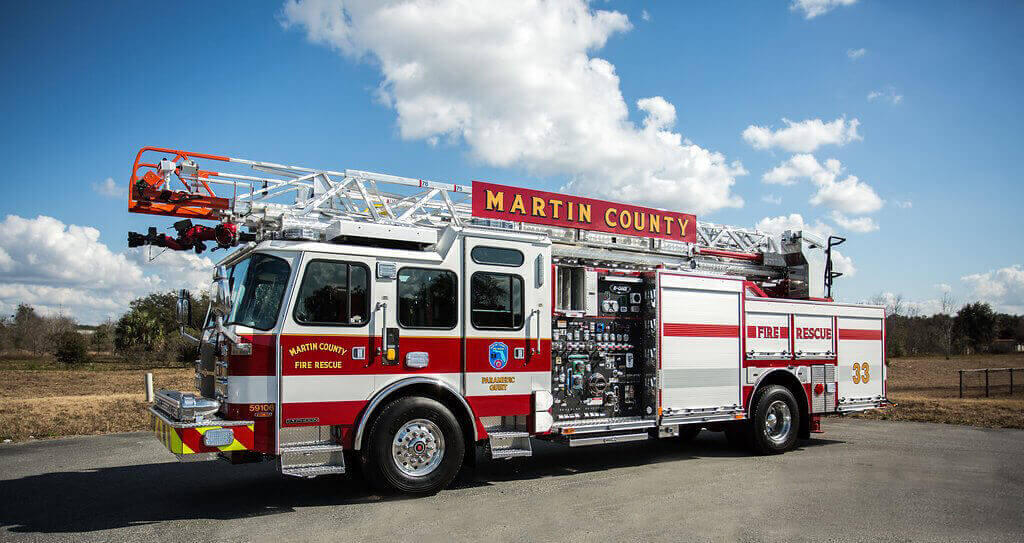

HP 78

AN AERIAL LADDER THAT STEPS UP TO THE TASK

Achieve more versatility with the E-ONE HP 78, featuring an 825 lb. tip load for increased rescue capability. The 78’ ToughTruss^™ ladder features extruded aluminum construction that doesn’t rust, need painting or require rung cover replacement.

Literature

E-ONE’s HP 78 features a 825 lb tip load for increased rescue capability and additional reach of similar products in its class. The ToughTruss^™ ladder design features extruded aluminum construction that exceeds NFPA’s 1901 requirements with a 2.5 to 1 structural safety factor. No other manufacturer consistently offers you this commitment to safety. In addition, the aluminum aerial will not rust, need painting, or require rung cover replacement, delivering lower life-cycle cost than steel aerials. With the combination of generous compartmentation, ground ladder storage, hosebed and tank size, the HP 78 outperforms, outmaneuvers and out-reaches the competition.

Typhoon or Cyclone cab
58”, 67.5”, 74” and 80” cab lengths available
Optional split raised roof and exterior cab compartments
210”-230” wheelbase
Hot dipped galvanized & powder coated 12″ double rail frame standard
Cummins® engines up to 605 HP
Taper leaf front suspension with optional IFS
Spring or air ride rear suspension
Standard safety features include roll cage style cab, CrewGuard® & ABS brakes
Clean cab options including Active Air Purification, HEPA filtration, easy-clean seating, and alternative SCBA storage available to meet customer requirements

78’ ToughTruss extruded aluminum ladder with 2.5 to 1 structural safety factor
825 lb tip load dry (750 lbs firefighters & 75 lbs equipment); 575 lb tip load wet (500 lbs firefighters & 75 lbs equipment)
Single set of jacks with a spread of only 16’
Optional short jack feature with 200-degree rotation and “alley” mode
Over 25” fly section width permits stokes basket to fit between handrails

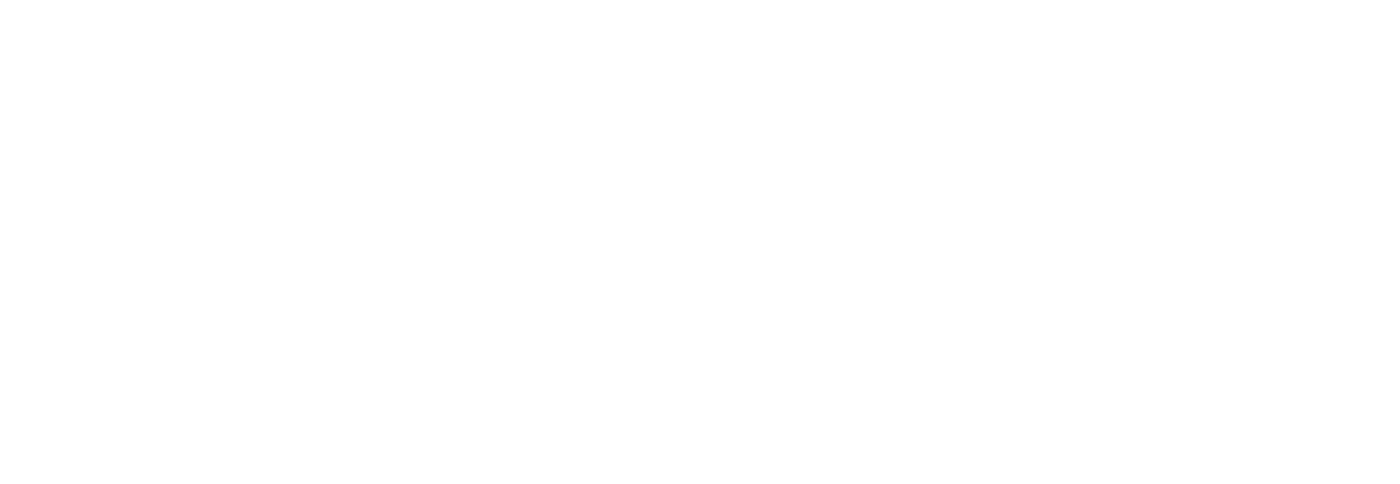

11’7” overall height (lower travel height options available)
Options include Advanced Aerial Control System (AACS), pinned waterway, 2.5” valve at tip, tip controls, pump panel aerial controls, and ladder brackets

Extruded aluminum body
Available in center hosebed and SideStacker configurations
Center hosebed body includes twin hose chutes and upper compartments on driver and officer side
SideStacker body configurations offer up to 172 cubic feet of storage and up to 55 cubic feet of hosebed storage with the ability to hold 1000’ of 5” hose and 300’ of 3” hose with a 500 gallon tank

Hale®, Waterous®, Darley® or MAC1® pumps up to 2000 GPM
300 to 500-gallon poly tank with optional foam cell(s)
Optional eMAX design provides low pre-connected handlines, enclosed pump operator’s panel, and additional enclosed storage
Optional foam systems; direct injection, CAFS, and around the pump (ATP)
Customizable discharges and pre-connects to meet department’s needs
Stainless steel discharge manifold

Multiplex electrical system with color display provides increased feature capability and improved diagnostics
Customizable LED warning light packages
Optional high power LED scene lighting
Generators available from 6 to 15 KW
Optional LED ladder-climbing lights in various colors
LED Tip mounted scene lights
Camera options include rear, side, 360 degrees, and at the ladder tip

25% STRONGER

Engineered with a 2.5 to 1 structural safety factor versus the NFPA minimum of 2 to 1, results in complete aerial design from the ground up that stands stronger, 25% stronger.
