THE E-ONE

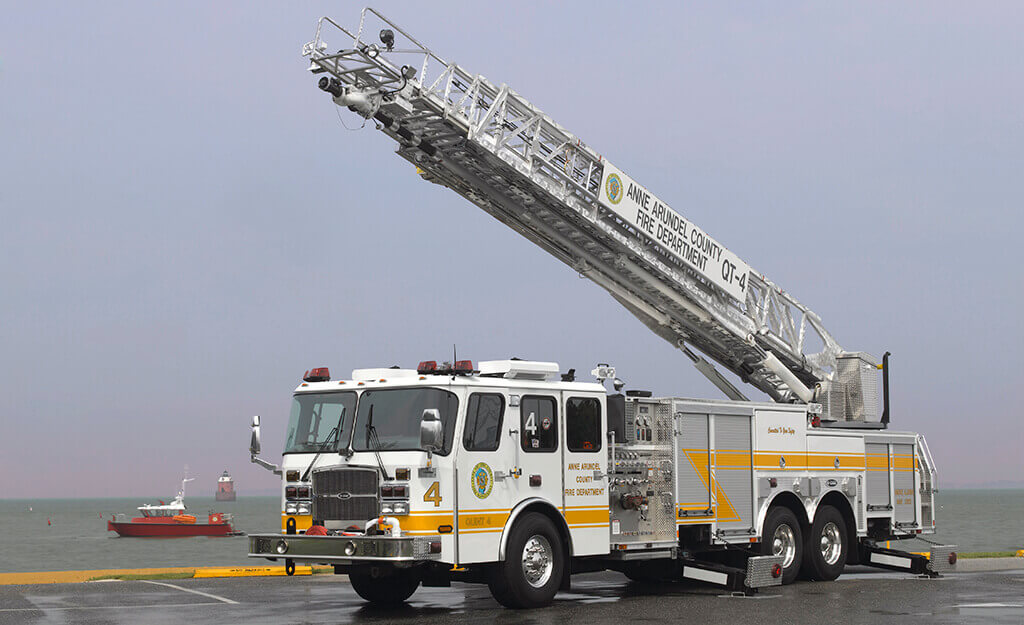

CR 100 LADDER
AERIAL LADDERTHE ULTIMATE IN RESCUE CAPABILITY
If tip-load performance and versatility top your list of “must haves,” the CR 100 is your aerial, featuring an impressive 800 lb. capacity for firefighters and gear.
If tip-load and low-angle performance top your list of “must haves,” our CR 100 Ladder with an impressive 800 lb capacity for firefighters is your aerial. It utilizes our famous integral torque box chassis and narrow stabilizer spread to make your job easier while holding heavier loads.
The exclusive integral torque box chassis features a Resistance to Bending Moment (RBM) rating of 14,350,000. The all-welded, structural steel torque box frame with internal gussets relieves ladder stress loads more efficiently without passing undue stresses into the apparatus body and cab. Underslung jack assemblies below the torque box with the high-strength, lightweight aluminum aerial provides a low center of gravity for improved road handling.
Features
- Typhoon® or Cyclone® chassis
- Medium, long and extended length 4-door cabs available
- Optional split-raised roof
- Integral torque box chassis
- 245-250” wheelbase
- 500-600 HP engine
- Standard safety features such as roll cage cab, CrewGuard®, ABS brakes and G4® (electronic stability control)
- Airbags optional
- 100’ welded extruded aluminum ladder with 2.5 to 1 structural safety factor
- 800 lb tip load (750 lbs firefighters and 50 lbs equipment) dry and 550 lb (500 lbs firefighters and 50 lbs equipment) wet
- Criss-cross, underslung jacks with only 13’8” spread
- 11’10” overall height; 12’1” with center hosebed
- 3” lower overall height available with Cyclone aerial cab
- Over 24” fly section width permits stokes basket to fit between handrails
- Options include aerial information system (AIS), pinned waterway, 2.5” valve at tip, and ladder, axe and pike pole brackets
- Body available in aluminum or stainless steel
- Available in center hosebed, SideStacker and truck company configuration
- SideStacker body features full-depth compartments
- SideStacker body configuration allows for a full ISO requirement of 182’ of ground ladders with a 300 gallon tank
- Hale® or Waterous® pumps up to 2000 GPM
- Optional foam systems, direct injection, CAFS and around the pump (ATP)
- 300-500 gallon water tank
- Customizable discharges and preconnects to meet departments needs
- Stainless steel discharge manifolds
- Multiplex electrical system with color display provides increased feature capability and improved diagnostics
- Options include LED scene lights
- LED ladder climbing lights
- 6-20 kW hydraulic generators
- Whelen® optical and audible warning packages standard, others optional
25% STRONGER
WHY 2.5 TO 1 MATTERS?
Engineered with a 2.5 to 1 structural safety factor versus the NFPA minimum of 2 to 1, results in complete aerial design from the ground up that stands stronger, 25% stronger.
THE CR 100 ADVANTAGE
800 LB. CAPACITY LADDER
ENHANCED RESCUE CAPABILITIES The 100’ welded extruded aluminum ladder can span a reach of 100’ vertically and 91.5’ horizontally while supporting 750 lbs. of firefighters and 50 lbs. of equipment.
2.5 TO 1 STRUCTURAL SAFETY FACTOR
EXCEEDING NFPA 1901 REQUIREMENTS E-ONE is known for its 35-year proven track record in safety, exceeding NFPA requirements of 2 to 1 by 25%.
100’ EXTRUDED ALUMINUM LADDER
SAFE AND SECURE The 100’ extruded aluminum ladder doesn’t rust, reflects and dissipates heat rapidly and never needs re-painting. Plus, the ladder features tall handrails for secure climbing.
THE STRONGEST CAB IN THE INDUSTRY
EXCEEDING NFPA REQUIREMENTS Keep crews safe with the cab that withstands more than five times the static roof load and more than twice the frontal impact required by the NFPA.
ADVANCED AERIAL CONTROL SYSTEM
The electric over hydraulic Advanced Aerial Control System provides smooth ladder operation. Conventional direct hydraulic controls are also available.
UNMATCHED STABILITY
INTEGRAL TORQUE BOX CHASSIS The CR 100 provides rock-solid stability even when tested to 1.5 versus times the rated load over the front with tires off the ground.
COMPACT OUTRIGGERS
QUICK SET-UP WITH A 13’ 8” SPREAD
This aerial features crisscross under-slung outriggers with only a 13’ 8” spread. This design is easy to work around, maximizes compartment space and sets up in less than
45 seconds.
MORE STORAGE SPACE
Deep compartments and a large tunnel provide generous storage. This aerial also packs 182’ of enclosed ground ladder storage and a 300 gallon water tank.
