Select Series HP 75 Ladder

EXCEED EXPECTATIONS

The Select Series HP 75 aerial features an extruded aluminum ladder that exceeds NFPA requirements with a 2.5:1 structural safety factor. In addition, the aluminum aerial will not rust, need painting, or require rung cover replacement delivering a lower life-cycle cost than other aerials on the market. Available chassis include the Typhoon and Cyclone with cab lengths ranging from 58″ to 67.5″ to meet department needs. With the combination of generous compartmentation, ground ladder storage, hose bed and tank size, the HP 75 outperforms, out maneuvers and provides greater value than the competition.

Specifications

VERTICAL REACH

  • 78′

HORIZONTAL REACH

  • 70′ 2″

OVERALL HEIGHT

  • 11′ 4″ (+/-1″)

OVERALL LENGTH

  • 37′ 1″ (options may increase OAL)

WHEELBASE

  • 210″ or 220″

CAB

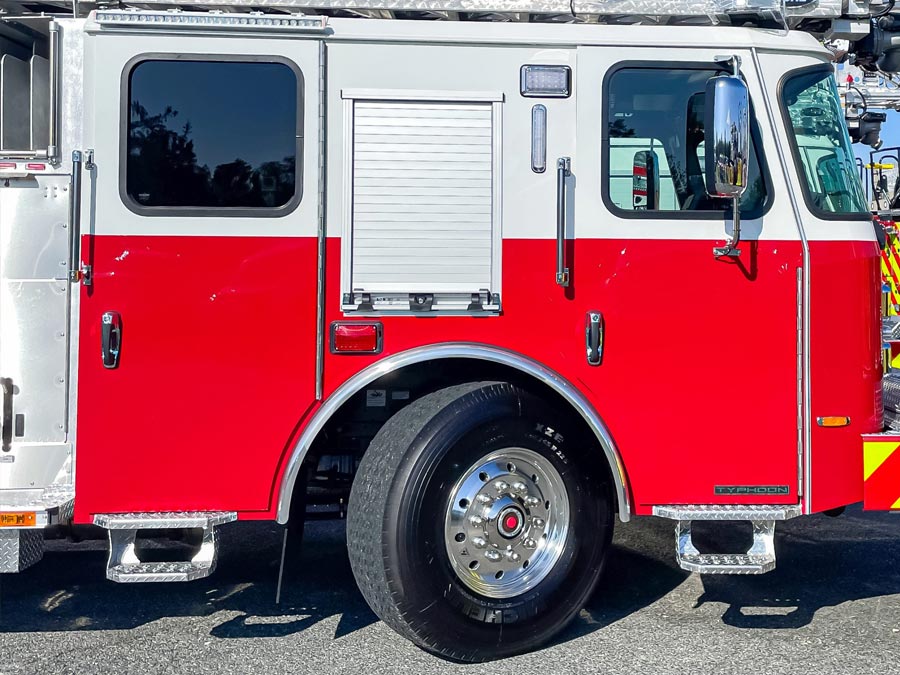

  • Typhoon or Cyclone cabs in 58″ to 67.5″ lengths; full-length or barrier-style doors, flat or split-raised roof

CHASSIS FRAME

  • Powder-coated hot-dipped galvanized full-length double-rail frame

GAWR

  • 54,500 lbs. (21,500 front, 33,000 rear)

ENGINE

  • Cummins 450 HP X10

TIP LOAD

  • 500 lb. tip load wet or dry-plus 75 lbs. equipment allowance

WATERWAY

  • Pinnable to ladder tip or end of section 2 with up to 1,500 GPM flow

MONITOR

  • Akron, TFT or Elkhart; extended range, wireless and 2.5″ tip valve optional

OUTRIGGERS

  • Single set of outriggers with 16′ spread; optional short jack with alley mode

AERIAL CONTROLS

  • Advanced Aerial Control System (AACS); pump panel and tip controls optional

BODY

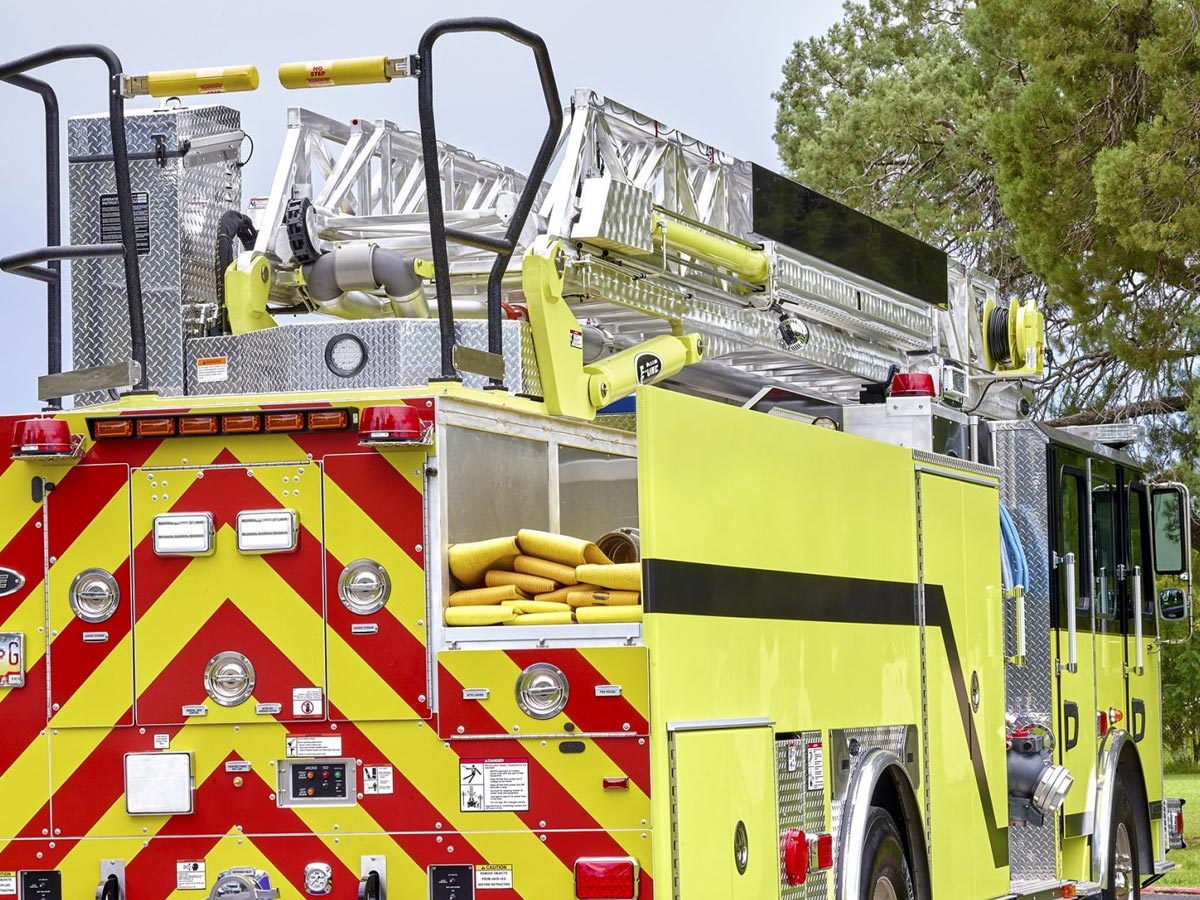

  • Extruded aluminum with SideStacker hose bed (holds 800′ 5″ and 300′ of 2.5″/3″); side hose bed access doors optional

BODY DOORS

  • Hinged, roll-up or combo; roll-up brands include ROM and Amdor

GROUND LADDERS

  • Enclosed tunnel for Alco-Lite or Duo-Safety holding 35′, 28′, 16′ and 10′ ladders; options for roof/wall ladders on aerial base and combo ladder on body

PUMP

  • Hale or Waterous; 1,500 or 2,000 GPM (6,000 LPM also available)

TANK

  • 500 gallons; 470 / 30 with optional foam cell

Features and Benefits
