Industrial HF 90 Ladder
UNMATCHED STRENGTH AND STABILITY.
The E-ONE Industrial HF 90 Ladder is engineered for extreme firefighting conditions, delivering elevated master stream capability with flows of up to 2,500 GPM. Paired with a powerful 4,000 GPM water pump and a 725-gallon foam tank, this apparatus is designed for maximum suppression performance. Its balanced pressure foam system ensures precise control of foam ratios across multiple discharges, providing flexibility and efficiency on the fireground. Built on E-ONE’s legendary integral torque box chassis, the unit offers unmatched strength and stability and is available with your choice of a Typhoon or Cyclone cab for a custom fit to your department’s needs.
Specifications
VERTICAL REACH
- 88′
HORIZONTAL REACH
- 78′ 5″
OVERALL HEIGHT
- 12′ 0″ (+/-1″)
OVERALL LENGTH
- 43′ 1″ (options may impact OAL)
WHEELBASE
- 250″
CAB
- Typhoon or Cyclone short 4-door (44.5″); full-length or barrier-style doors
CHASSIS FRAME
- Integral torque box design, combining the chassis frame and aerial torque box
GAWR
- 24,000 lbs. front; 54,000 lbs. rear with leaf spring, rubber spring or air-ride suspension
ENGINE
- Cummins X15 (605 HP)
TIP LOAD
- 750 lb. tip load (250 lbs. wet) plus 75 lbs. equipment allowance
WATERWAY
- Fixed at ladder tip with up to 2,500 GPM flow
MONITOR
- Williams Ranger 2,500 GPM with wireless controller

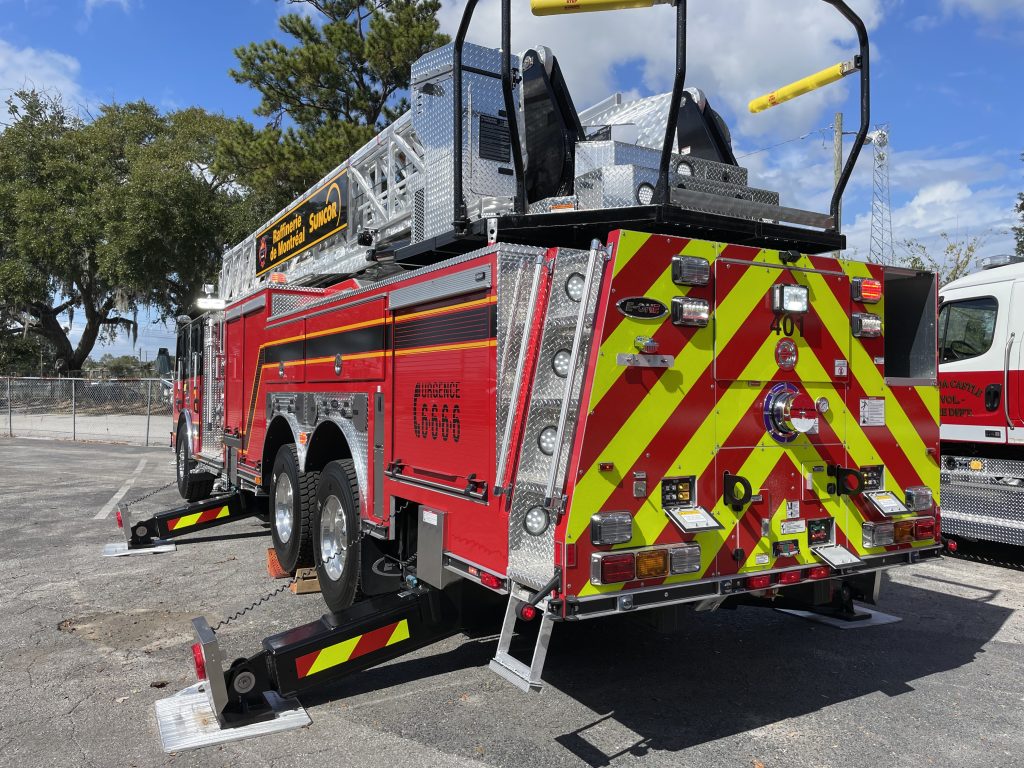

OUTRIGGERS
- Crisscross underslung with 13′ 8″ spread; optional short jack with alley mode
AERIAL CONTROLS
- Advanced Aerial Control System (AACS) Deluxe with body protection and 7″ color display; pump panel controls and wireless controls optional
BODY
- Extruded aluminum with full-height compartments each side; angled rear body corners optional
BODY DOORS
- Hinged or combo of roll-up and hinged; roll-up brands include ROM and Amdor
HOSE BED
- SideStacker design with optional side access doors
PUMP
- Hale or Waterous up to 4,000 GPM (LPM and IGPM ratings available)
TANK
- Up to 725 gallons foam
FOAM SYSTEM
- Balanced pressure
ELECTRICAL SYSTEM
- Multiplex electrical system with color display for driver or driver and officer, LED warning / scene lighting, generator and 120 / 240V options available
Features and Benefits
