EMAX CUSTOM PUMPER
TAKE EMERGENCY RESPONSE TO THE MAX, THE eMAX.
The eMAX Custom Pumper offers the maximum of all worlds. Maximum enclosed compartment storage, maximum accessibility with low, preconnected handlines and a rear access ladder. All to provide maximum versatility. E-ONE’s eMAX provides fire, rescue and EMS response capabilities in a single organized fire apparatus. eMAX is available on Cyclone or Typhoon custom chassis with five cab lengths and four vista roof heights. All these features combined allow you to maximize your performance with the eMAX by E-ONE.
Specifications
Custom Chassis
- Cyclone® or Typhoon® chassis
- Medium (58”), long (67.5”), stretched long (74”) and extended (80”) 4-door cab lengths available
- Optional vista roof in four heights ranging from 12” to 24”
- Seating for up to 10
- Wheelbase as low as 170”
- Up to 605 HP engine
- Standard safety features such as roll cage cab, front and side air bags, Electronic Stability Control and CrewGuard.
- Galvanized / powder-coated frame for corrosion protection
Fire Package
- Side-mount, top-mount or enclosed top-mount pump operator controls

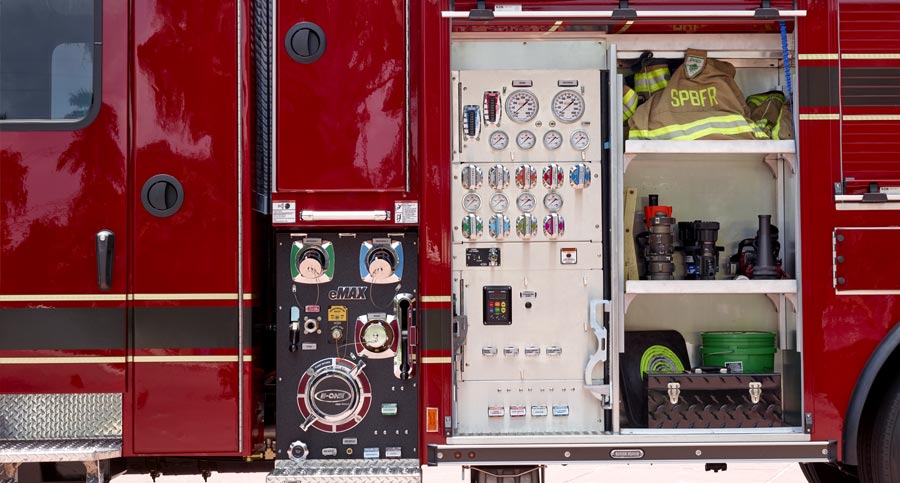

- Compact pump operator panel design is less than 24” wide (side mount)
- Pumps up to 2,000 GPM
- Manual or electric valves
- Class A or Class B direct injection, CAFS or ATP foam systems available
- Tried and true split-shaft pump drive design is standard that does not rely on a continuously spinning power take-off, resulting in less noise, less moving parts and less wear and tear on your apparatus; on-demand PTO drive is available for pump and roll applications
- All discharge controls with the E-ONE pump are conveniently located at the pump panel, away from discharge hoses
- Low intakes for easier hose connection
Body Construction
- Body available in 3/16” extruded aluminum or stainless steel
- 500 to 1250-gallon tank capacities available with optional integral foam cells
- Enclosed tunnel for two-section, roof and attic ladders, pike poles standard; center mount or heavy-duty two-arm overhead ladder racks available
- Low preconnected handlines with optional transverse backboard storage
- A convenient access panel in the forward compartment on the officer’s side allows for easy access when servicing the pump and plumbing
- Standard or low hose bed
- Roll-up or hinged body doors
- Rescue pumper options include full-height full-depth driver and/or officer compartments, extended body with double front compartments, short body for greater maneuverability and reduced overall length, wide or narrow roof top compartments and shelves, trays and tool boards for equipment mounting
Electrical
- Multiplex electrical system provides increased feature capability and improved diagnostics
- Standard color display for driver; additional display(s) available
- Wide selection of LED warning lights, sirens and speakers are available
- Fixed- and pole-mounted scene lighting options
- Optional 6-20 kW hydraulic generators
Features and Benefits
